PETp ErtalyteŽ Rods

EralyteŽ PET-P,


ErtalyteŽ is an unreinforced, semi-crystalline thermoplastic polyester based on polyethylene terephthalate (PET-P). It is manufactured from proprietary resin grades made by Quadrant. It is characterized as having the best dimensional stability coupled with excellent wear resistance, a low coefficient of friction, high strength, and resistance to moderately acidic solutions. Ertalyte's properties make it especially suitable for the manufacture of precision mechanical parts which are capable of sustaining high loads and enduring wear conditions. Ertalyte's continuous service temperature is 210F (100C) and its melting point is almost 150F higher than acetals. It retains significantly more of its original strength up to 180F (85C) than nylon or acetal.

In addition, ErtalyteŽ PET-P offers good chemical and abrasion resistance. Its low moisture absorption enables mechanical and electrical properties to remain virtually unaffected by moisture. ErtalyteŽ PET-P can be machined to precise detail on standard metal working equipment.

ErtalyteŽ is FDA compliant in natural and black. Natural ErtalyteŽ is also USDA, 3A-Dairy and Canada AG compliant.



ErtalyteŽ TX is an internally lubricated thermoplastic polyester providing enhanced wear and inertness over general purpose nylon(PA) and acetal(POM) products. Containing uniformly dispersed solid lubricant, Ertalyte� TX provides a lower wear rate and coefficient of friction than unmodified polyesters like PET or PBT and even internally lubricated materials like DelrinŽ AF blend.

ErtalyteŽ TX excels under both high pressure and velocity conditions. It is also ideally suited for applications involving soft metal and plastic mating surfaces.


Petp ErtalyteŽ Sheets

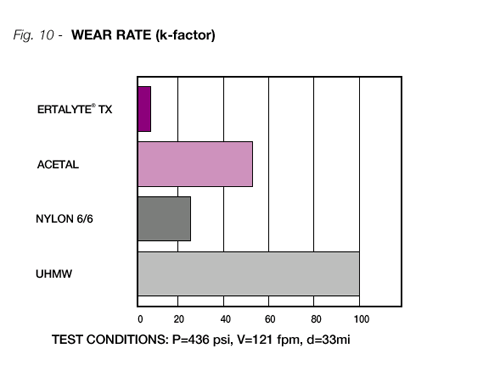

ErtalyteŽ Wear Factors

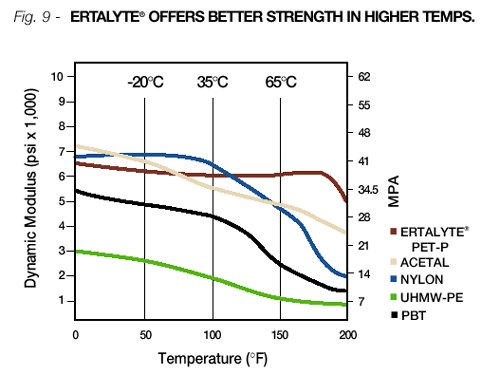

ErtalyteŽ CLTLE Graph

ErtalyteŽ Petp Technical Data Sheet

PETp ErtalyteŽ Round Rods

5 Ft Std. Lengths
Stock Order# Diameter Standard Length Price Per Foot Purchase Online
KR-5284 1/2 4' & 8' -- 8' Min. $5.40 Buy Now
KR-5283 5/8 5'  $6.48 Buy Now
KR-5274 3/4 5'  $7.74 Buy Now
KR-5281 1.0 4' & 8' -- 8' Min. $12.96 Buy Now
KR-5289 1 1/4 4' & 8' -- 8' Min. $18.93 Buy Now
KR-5279 1 1/2 4' & 8' -- 8' Min. $26.25 Buy Now
KR-5277 1 3/4 5'  $34.23 Buy Now
KR-5295 2.0 5'  $43.32 Buy Now
KR-5276 2 1/4 4' & 8' -- 8' Min. $57.84 Buy Now
KR-5282 2 1/2 4' & 8' -- 8' Min. $70.89 Buy Now
KR-5275 2 3/4 4' & 8' -- 8' Min. $85.59 Buy Now
KR-5280 3.0 5' $104.91 Buy Now
KR-5297 3 3/4 5' $171.11 Buy Now
KR-5304 4.0 5' $183.60 Buy Now



PETp Ertalyte® TX Round Rods
Stock Order# Diameter Standard Length Price Per Foot Purchase Online
KR-5303 3/8 4' & 8' -- 8' Min. $7.43 Buy Now
KR-5302 1/2 4' & 8' -- 8' Min. $7.74 Buy Now
KR-5301 1.0 5' $25.55 Buy Now
KR-5300 1 1/4 5' $36.97 Buy Now
KR-5299 1 1/2 5' $50.69 Buy Now
KR-5298 1 3/4 5' $71.46 Buy Now
KR-5290 2.0 5' $91.05 Buy Now
KR-5296 2 1/2 5' $142.76 Buy Now
KR-5306 3.0 5' $222.83 Buy Now



HDPE Colored Sheets

Polycarbonate Tubes

Thermoset Phenolics



UHMW









Compare Technical Differences on Plastic Properties
