G7 Glass Reinforced Silicone Tubes
G7 Glass Reinforced Silicone - natural (cream to white)

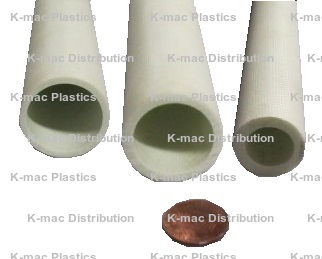

G7 Tubes
Technical Data Sheet G7 Tubes
Chemical
Resistance Chart
Composed of a continuous glass woven cloth base
impregnated with a silicone resin binder, this grade has excellent heat and arc
resistance. It has extremely good dielectric loss properties under dry
conditions and good electrical properties under humid conditions, although the
percentage of change is high.
Certifies to
NEMA grade G7 Glass-Cloth Reinforced Silicone -- natural color is typically cream to white. Composed of a continuous glass woven clothe base impregnated with a silicone resin binder, this grade has excellent heat and arc resistance. (Silicone thermosetting resins are among the best of all polymer materials in resistance to temperature. Hence, silicone is broadly used for high temperature electronic applications requiring low electrical losses. Silicone isn't as strong as epoxies and phenolics upon aging at lower temperatures but is stronger upon aging over 400 F.) G7 has extremely good dielectric loss properties under dry conditions and good electrical properties under humid conditions, although the percentage of change is high.
|
Select G7 Tube Wall Thickness Lead Times May Apply on Some Diameters |
||
| 1/32" | 3/16" | 3/4" |
| 1/16" | 1/4" | 1.0" |
| 3/32" | 3/8" | |
| 1/8" | 1/2" | |
Tubes are made in random lengths between 30 and 36 in.
Our pricing and minimums are based on the 36".
Tubes can also be made in 42" to 48" random lengths for the same per-foot pricing.
Measured lengths of 36"±1" and 48"±1" are also available via custom quote.
