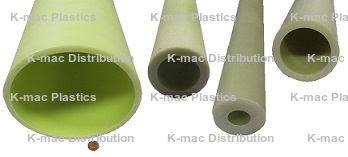

G10-FR4 Tubes Glass Reinforced Tubes - 3/8" Wall
(Micarta) (High Pressure Laminates) G10/FR4 Glass
Reinforced Epoxy - (yellowish to light
green)
The most versatile all-around laminate and
composite, this grade is a continuous glass woven fabric base impregnated
with an epoxy resin binder. It has extremely high mechanical strength, good
dielectric loss properties, and good electric strength properties, both wet and
dry.
G10 Tube Technical Data Sheet G10 Tube Chemical Resistance Chart
Grade NEMA FR-4 certs to MIL-I-24768/27 GEE-F, IPC 4101/21, IEC 60893-3 Type 2 EP GC 202
Tubes are made in random lengths between 30 and 36 in.
Our pricing and minimums are based on the 36".
Tubes can also be made in 42" to 48" random lengths for the same per-foot pricing.
Measured lengths of 36"±1" and 48"±1" are also available via custom quote.
| 3 Foot Minimums and Lead Times Apply
** Denotes 6 Foot Minimum |
||||
